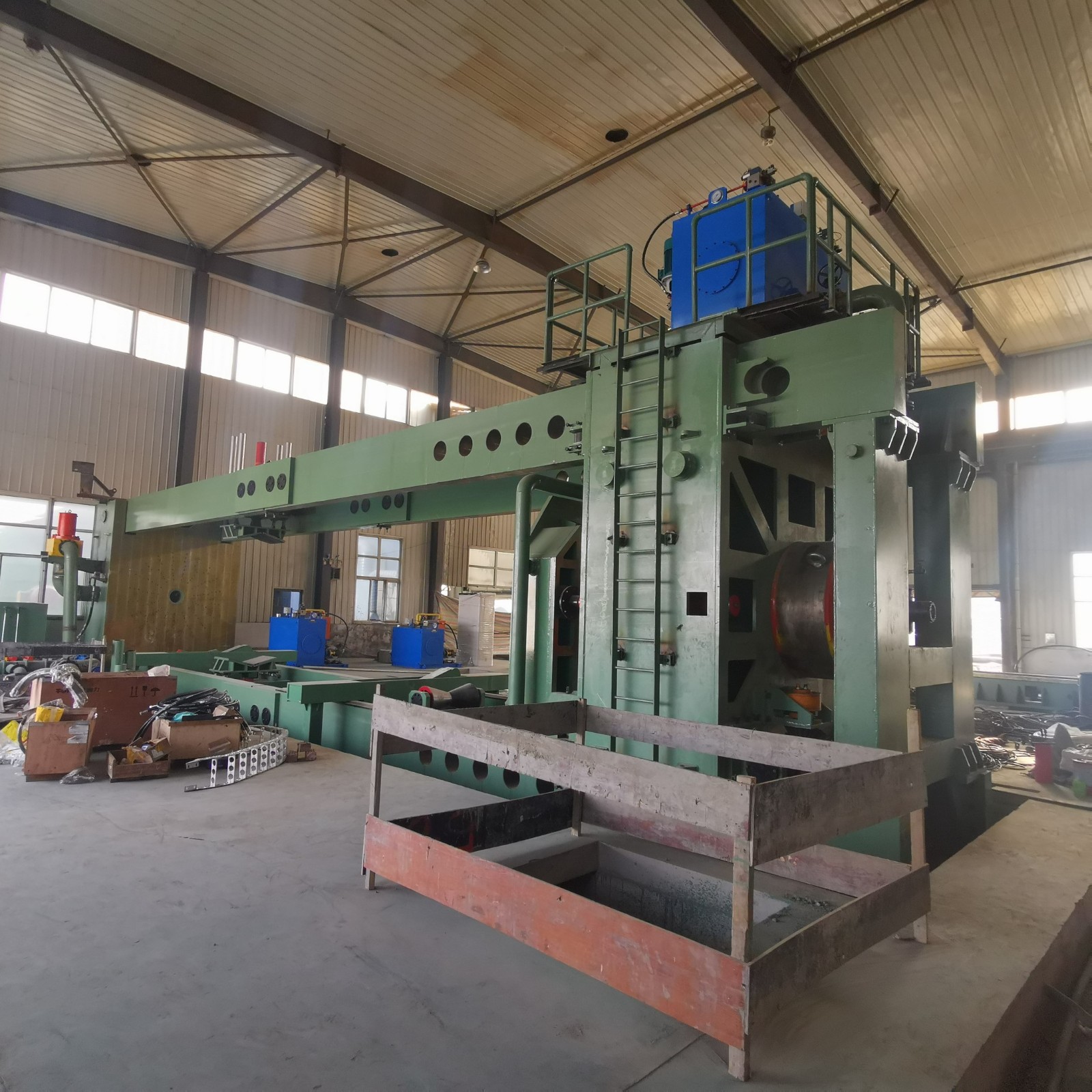

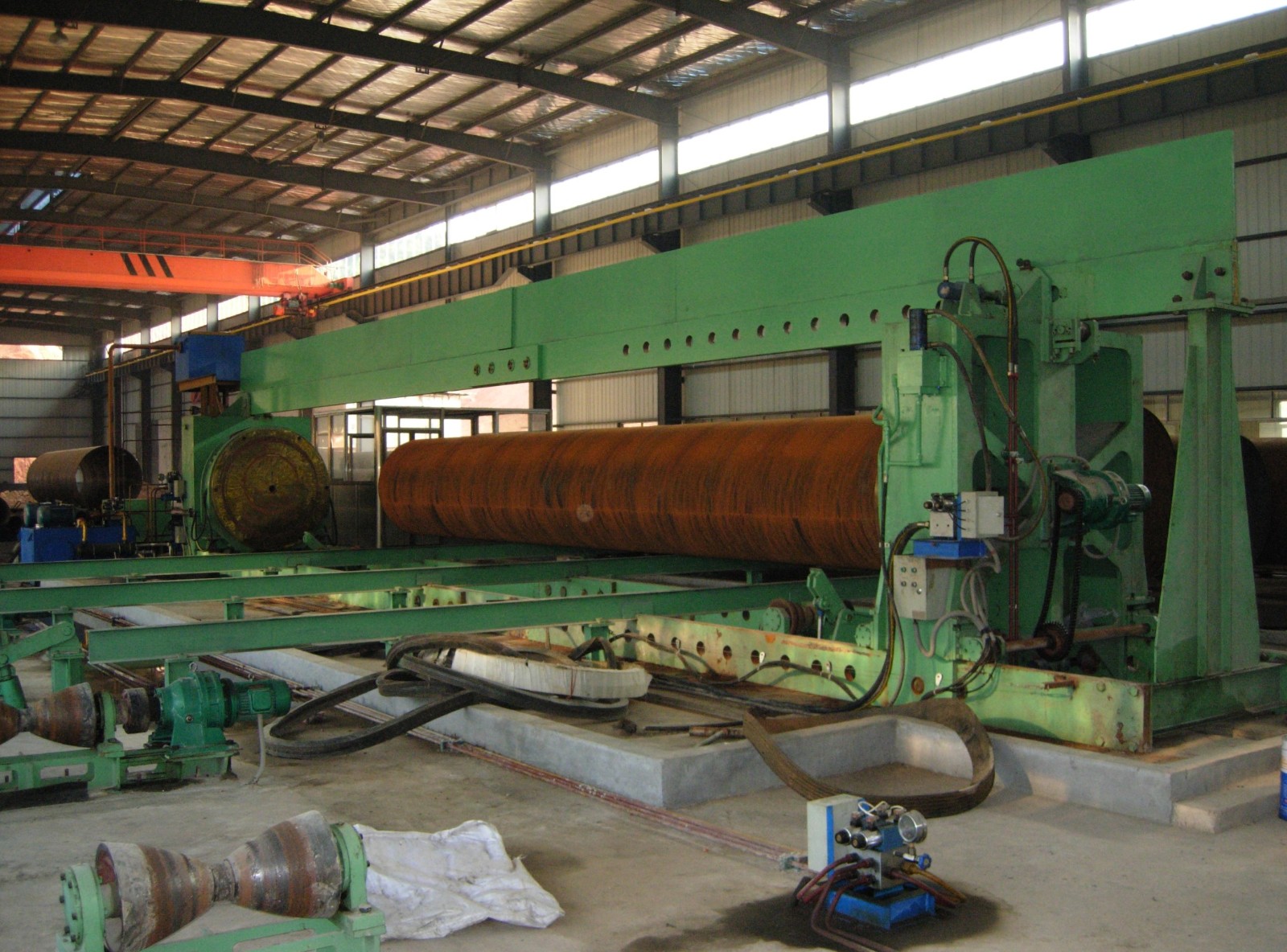

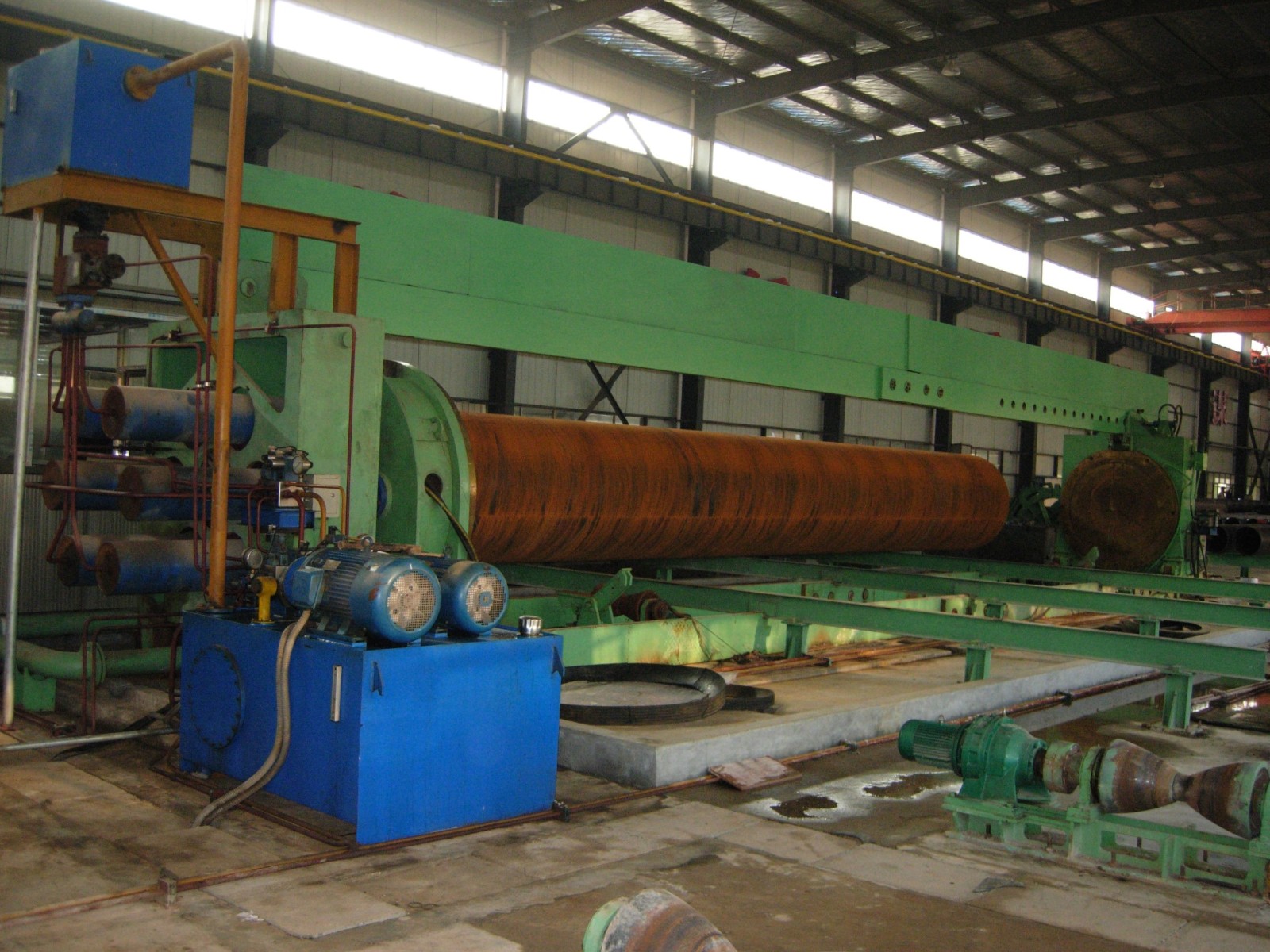

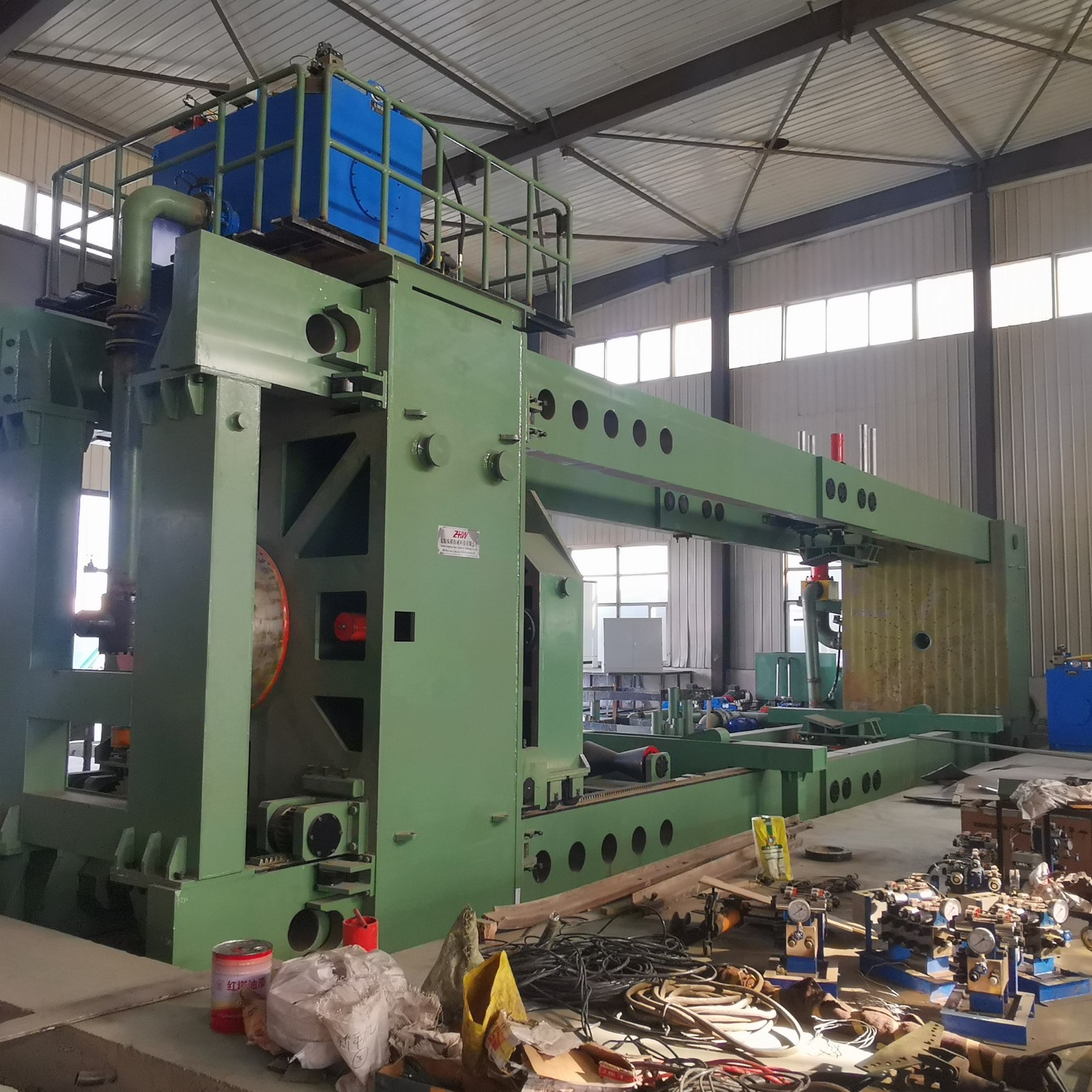

Hydro. tester for SSAW pipe mill

    Equipment form Four-pull beam type

    Production efficiency 2~12 pcs/hour

    Maximum test pressure 25 MPa

    Test capacity 630-2000 tons

    Moving speed of moving end 150 mm/min

    Seal type Face seal

    Pressurization method High pressure pump

    High-pressure water injection pump Two sets

    Low-pressure water injection pump Two sets

    Pressure test medium Water

    Holding time 5~10 seconds

    Diameter of steel pipe D508~D2020 mm

    Pipe length 10~12 m

            Installed capacity 160 KW
